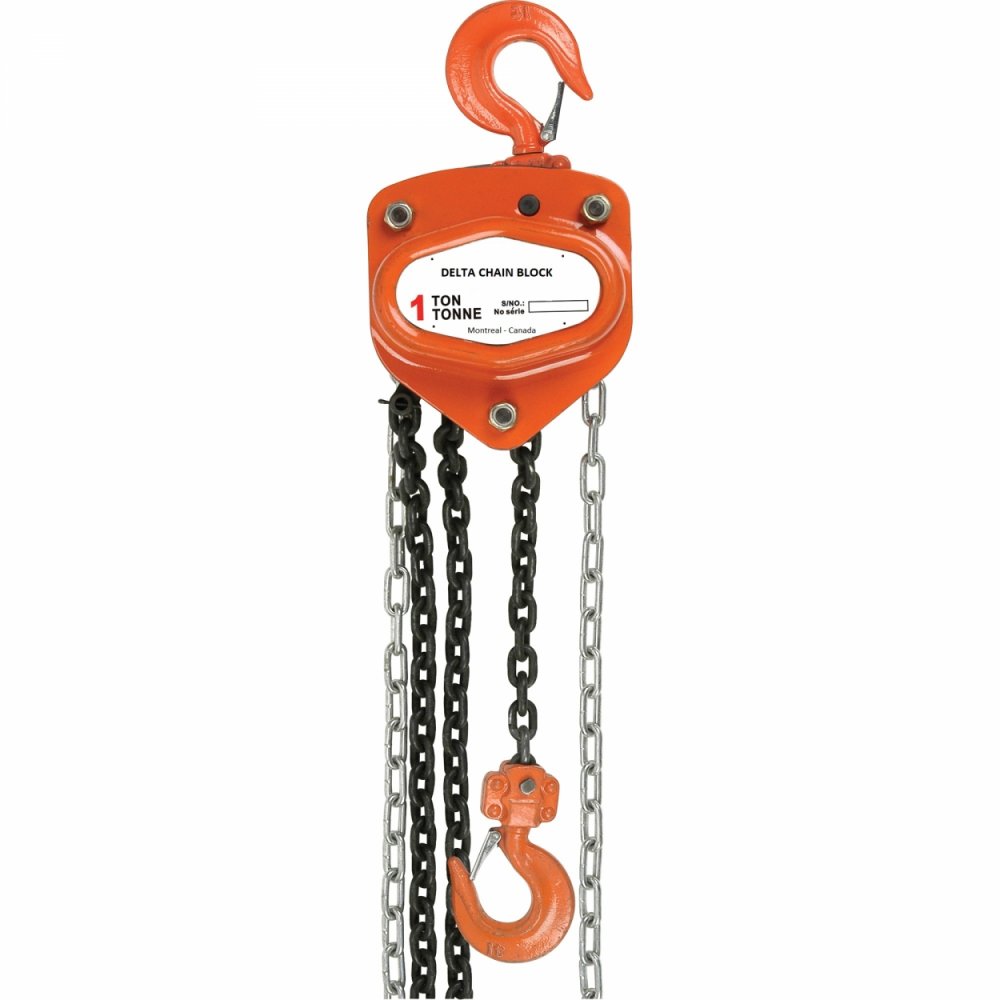

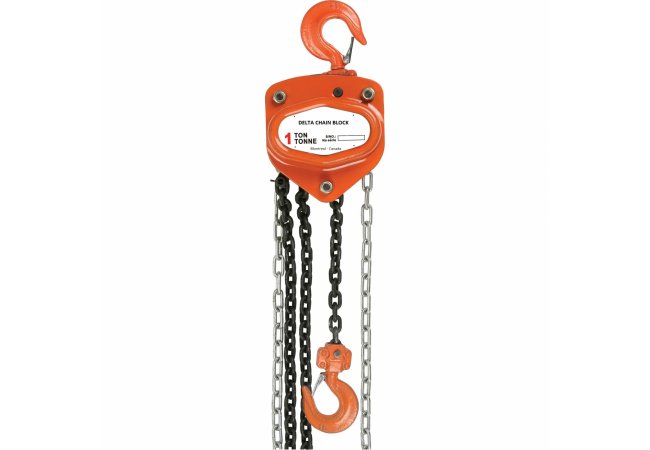

Delta manual chain hoist – HSZ Model

The Delta HSZ Chain Hoist is ideal for lifting material in an efficient and safe manner. Its lightweight, easy handling and durability makes it a favorite amongst its users. The chain hoist can be used in various domains such as construction, commercial and domestic applications.

  • Heavy-Duty
  • Meets ASME B30.16
  • Load test
  • Available with overload protection
  • 2 year warranty

***Assembled in Montreal, Canada***
***Chain bags available upon request***

Formats

  • Delta manual chain hoist – 1/2T to 20T – HSZ Model

Characteristics

  • Robust light weight steel construction
  • Both technical parameters and safety factor have reached or surpassed ISO specifications
  • Each chain block is tested to 150% of the rated capacity and is packed with a safety test certificate
  • Hand chain is zinc treated
  • Equipped with an end anchor to avoid over lifting/lowering
  • Electrostatic powder painted before assembly to avoid corrosion
  • The bottom hook is thrust bearing equipped for easy positioning of the load in any direction
  • Equipped with a double pawl braking system, with twin wet friction disc brakes
  • Available in ½ to 20 ton capacities
  • 2 years warranty
    2 years warranty
  • CSA approval
    CSA approval
